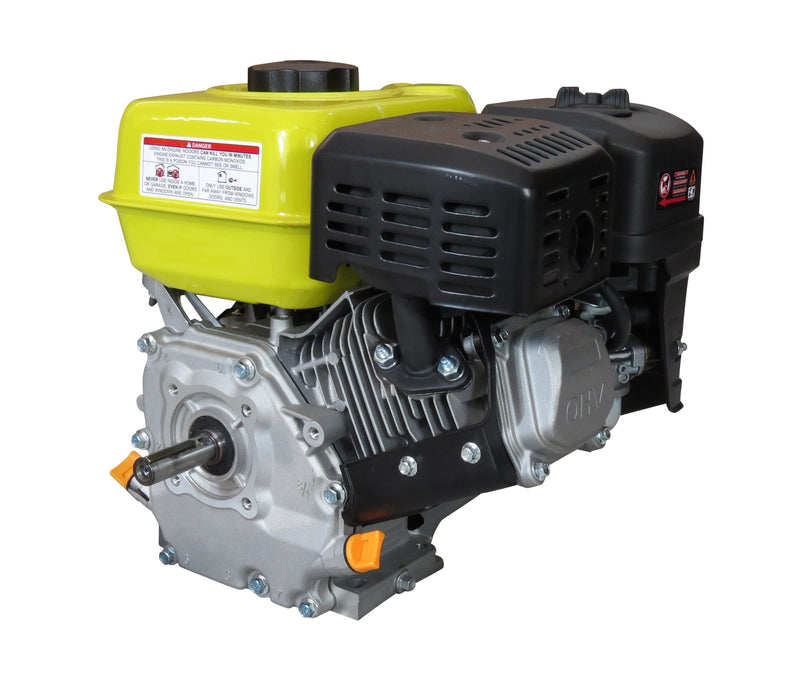

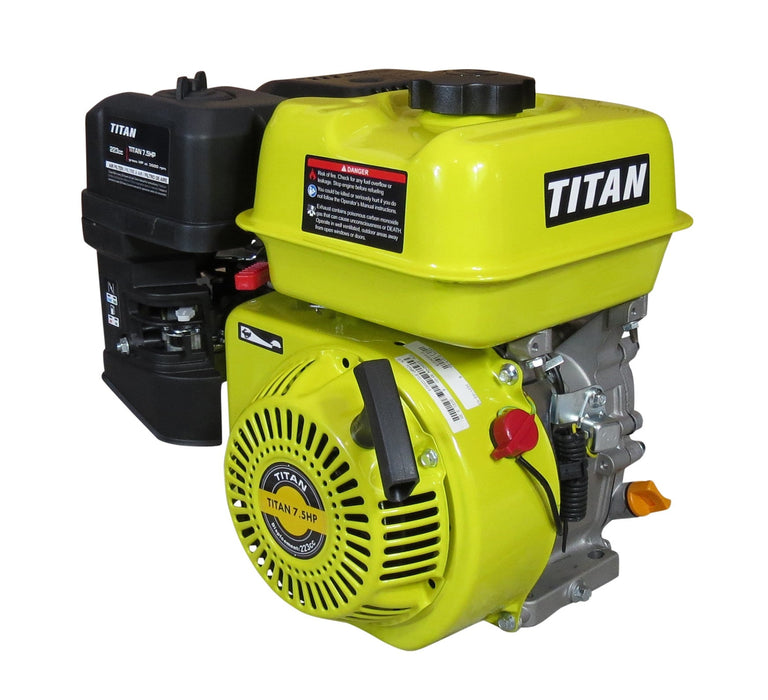

Titan 7.5HP Engine

• 7.5HP 4 stroke petrol engine
• Engine is easy starting OHV design
• Recoil start
• Four stroke, single cylinder, air-cooled
• Displacement – 220cm³
• Output shaft – 3/4" keyed
• Output direction - counter clockwise
• Fuel tank capacity - 3.5L
• Fuel consumption; 2L/hour @3600rpm
• Net weight - 15kg
• Dimensions; 375mm(W) x 335mm(H) x 310mm(D)
• Bolt holes around the shaft of the engine 65mm square.

Distance between the 4 x Bolt Holes on the base plate of motor:
Width: 164mm from centre hole to centre hole (actual bolt hole size = 10mm)
Depth: 77mm from centre hole to centre hole(With an hole 10mm x 14mm to allow for adjustment).

The 4-stroke Over Head Valve design of the motor makes it economical and reliable.

Titan engines are full industrial spec with

• Cast iron cylinder liner
• Ball bearing supported crankshaft
• Dual element air cleaner
• Mechanical decompressor
• Industrial governor system
• Low oil cut out system

FREE Service Pack

Valued at $59.00!!

Includes;

• 1 x 1L engine oil
• 1 x replacement air filter
• 1 x replacement NGK spark plug
• 1 x spark plug spanner

Get The RIEQUIP Advantage!

• Every item test run before dispatch
• 1 year warranty
• Approved service agents nationwide
• Guaranteed spare parts backup for the life of your equipment!
