Description

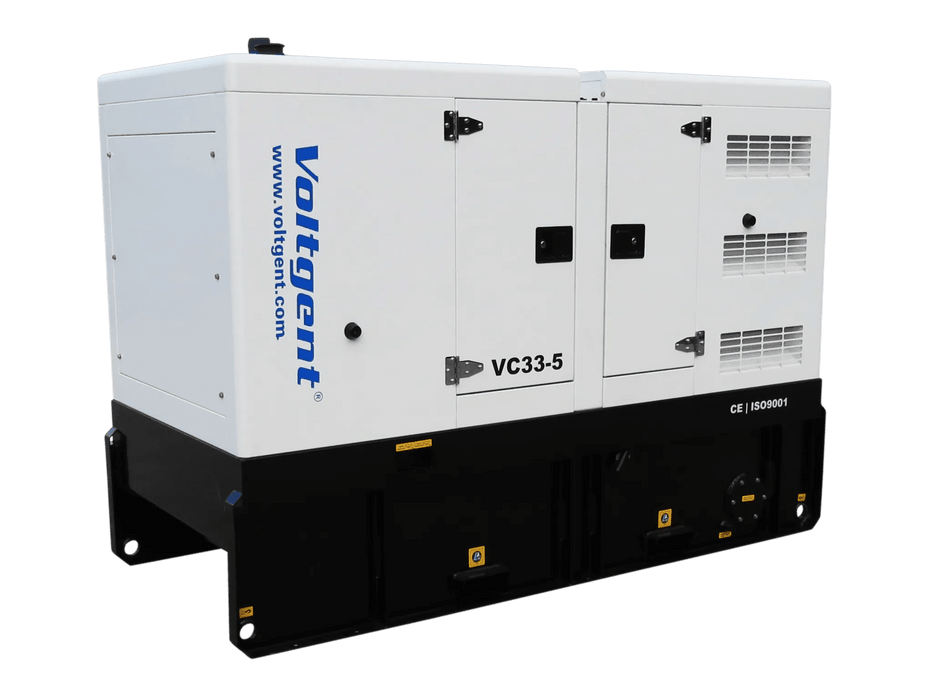

Built Tough. Built to Last. Power You Can Rely On – When the lights go out, this 33kVA Silent Enclosed Diesel Generator – Cummins Powered steps up without hesitation. Engineered for serious performance, it delivers dependable power for farms, homes, workshops, and commercial sites that simply can’t afford downtime.

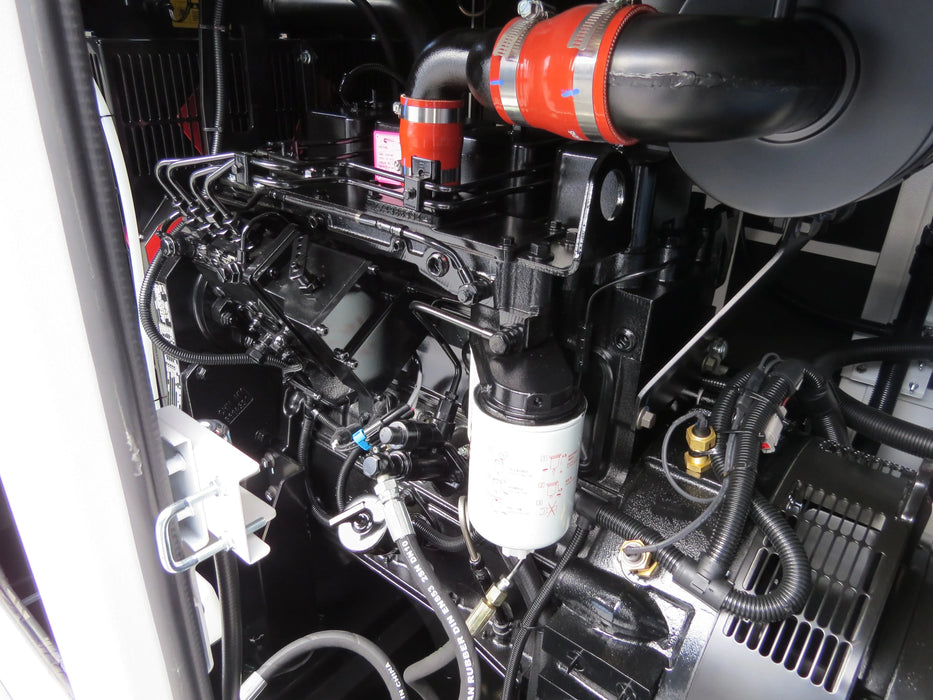

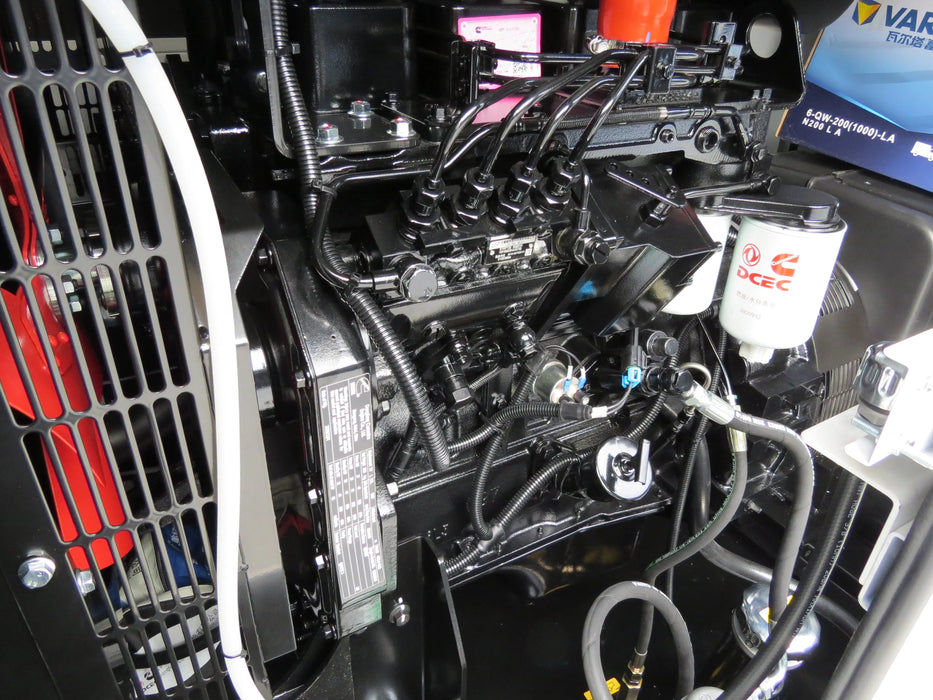

Bullet-Proof Cummins Reliability – At its heart is the legendary Cummins 4B3.9‑G12 industrial engine — a proven workhorse known worldwide for strength, efficiency, and long service life. This is the kind of durability only a true industrial engine can offer.

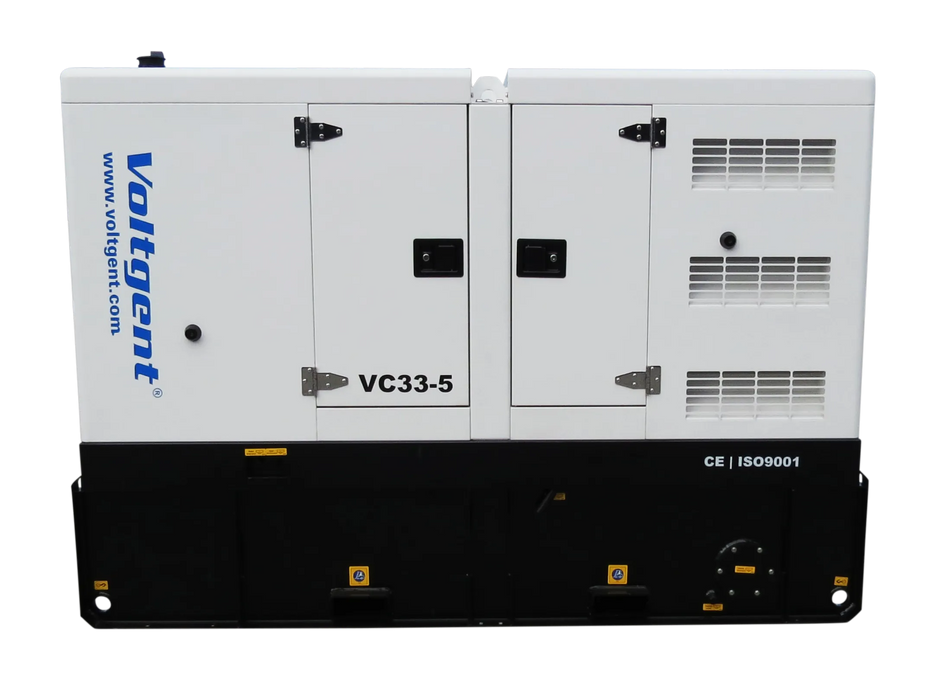

Protection From The Elements – Encased in a heavy-duty acoustic canopy, the generator keeps operating noise low while protecting internal components from harsh New Zealand weather. Built on a robust base with bell-type anti vibration mounts and industrial grade components throughout, it’s made to handle tough environments without compromise.

World Renowned Power – Leroy Somer alternators deliver reliable, efficient power with Class H insulation and proven overload capability for demanding environments, serving key sectors such as marine, oil and gas, mining, energy production, data centres, and biomass operations, while their brushless, self-excited design with advanced AVR provides smooth, stable voltage ideal for sensitive electronics, pumps, power tools, and critical building systems, ensuring dependable performance across a wide range of applications.

Long Run Times – A generous 244-litre bunded fuel tank delivers extended run time when you need it most. Generator will run for 54 hours at 50% load. Intelligent Controller Technology – The advanced Deepsea DSE6120 controller provides full system monitoring, automatic start functionality, and seamless integration with an Automatic Transfer Switch (ATS) for effortless backup protection.

Features

Model: Cummins VC33-5
Heavy‑duty Cummins 4B3.9‑G12 diesel engine for long‑term reliability
Silent enclosed canopy for low‑noise operation
33kVA standby output (26 kW) – ideal for homes, farms & commercial buildings
Leroy Somer Brushless alternator, with electronic AVR for clean and stable voltage
Brushless alternator with electronic AVR for clean and stable voltage
Fuel‑efficient performance across all load levels:
Large 244L diesel tank for extended run time
DSE6120 controller with auto‑start and full system monitoring
Water‑cooled engine for optimal performance and longevity
Long lasting stainless steel door hinges
Rugged construction designed for NZ conditions
ATS‑ready – suitable for Automatic Transfer Switch connection
Strong steel frame & weather‑resistant finish
Dedicated cable entry port
Rain cap on exhaust outlet
Battery isolator switch
Oil and water separator included for ultimate engine protection
Emergency stop button with cover to prevent accidental activation
Above industry standard high‑pressure fuel hoses
All electrical connectors are IP67 rated for added safety and longevity
Fitted with maintenance free Varta batteries and Deep Sea battery charger
Integrated LED lighting inside canopy and control panel
Rigorous factory checks and load bank tests guarantees performance

Generator protection: the canopies undergo shot blasting, pickling, and phosphating before coating to ensure superior corrosion resistance and paint adhesion. This advanced pretreatment process helps protect against rust, weather exposure, and environmental wear — keeping your generator looking better and performing reliably for longer.

Specifications

Generator Output

Standby Output: 33 kVA / 26 kW
Prime Output: 30 kVA / 24 kW
Voltage: 400/230V
Frequency: 50 Hz
Fuel Type: Diesel
Noise Level: 70dB @ 7m with no load
Power Factor: 0.8
Phase: 3‑phase

Outlets:

1x 400V 63amp CEE 5-pin 3-phase,
1x 400V 32amp CEE 5-pin 3-phase
3x 230V 15amp NZ 3-pin plug single-phase

Engine

Model: Cummins 4B3.9‑G12
Type: 4‑stroke diesel, water‑cooled
Aspiration: Naturally aspirated
Cylinders: 4
Bore × Stroke: 102 × 120 mm
Displacement: 3.9 L
Compression Ratio: 18:1
Governor: Electronic
Oil Capacity: 10.9 L
Coolant Capacity: 15.2 L
Battery Requirement: 2 × 60Ah (24V)

Fuel Consumption

50% Load (Prime): 4.5 L/h
75% Load (Prime): 6.1 L/h
100% Load (Prime): 7.4 L/h
100% Load (Standby): 8.0 L/h

Alternator

Model: Leroy Somer TAL-A42-C
Type: Brushless, self‑excited
Poles: 4‑pole
Voltage Regulation: Electronic AVR
Insulation Class: H
Enclosure: IP23
Bearing: Single bearing

Air & Exhaust

Air Intake Flow: 34.5 L/s
Exhaust Temperature: 420 °C
Exhaust Gas Flow: 76.5 L/s
Max Back Pressure: 10 kPa

Dimensions & Weight (Silent Set)

Dimensions (L×W×H): 2400 × 1100 × 1670 mm
Dry Weight: 1342 kg
Fuel Tank Capacity: 244 L

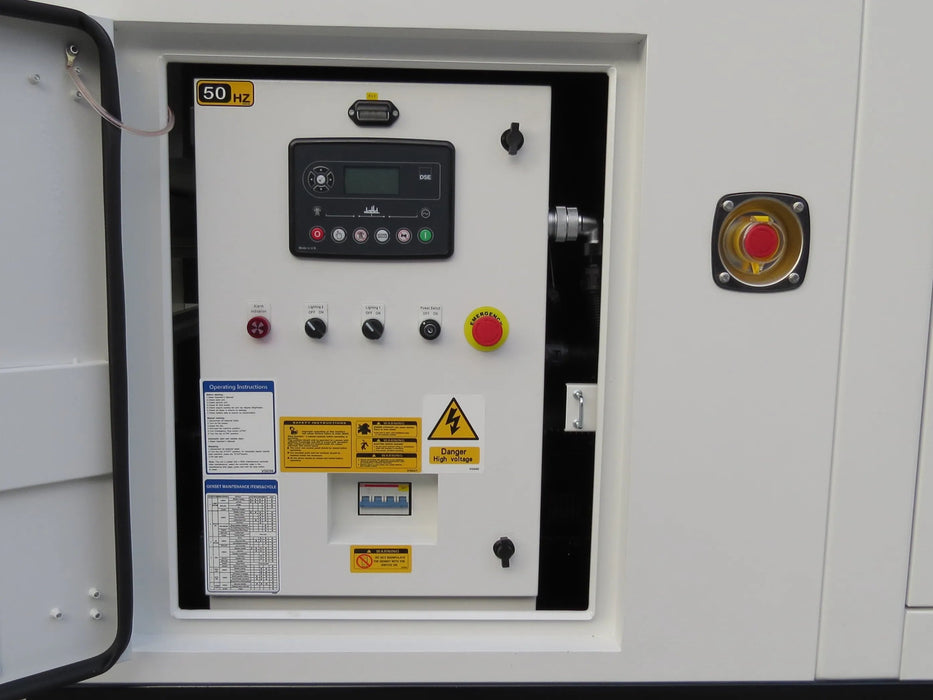

Control Panel – DSE6120

The DSE6120 controller provides:

Automatic or manual start
Back‑lit LCD display
Generator & mains monitoring
Adjustable voltage & frequency protection
Event logging
CAN communication
Multiple configurable inputs & outputs

IDEAL APPLICATIONS

Commercial & industrial standby power
Workshops & engineering backup
Construction, civil works & site power
Dairy, agricultural & primary industry
Emergency & critical‑operations power

Get The RIEQUIP Advantage!

New Zealand owned and operated
Every item is test run before dispatch
2 years or 1000 hours warranty (whichever occurs first)
Service agents nationwide
Stores in Auckland, Christchurch & Nelson
Guaranteed spare parts backup for the life of your machine

Quiet when it runs. Relentless when it counts.
This is standby power built for real‑world conditions, rugged, reliable, and ready to work.

Product Documentation

G2731T-Genset Data Sheet-VC33-5 Datasheet-Riequip.pdf

FAQs

What can a 33kVA diesel generator power?

A 33kVA generator is ideal for small to medium commercial sites, farm operations, and workshop backup. It can run essential equipment such as pumps, tools, refrigeration units, lighting, and office systems simultaneously.

Is this generator suitable for standby use?

Yes, it is designed for standby power applications and can be connected to an automatic transfer switch (ATS) to supply power automatically during outages, helping keep operations running without interruption.

How quiet is a silent diesel generator?

This model comes with a sound-attenuated canopy that helps reduce noise and vibration, making it suitable for use around businesses, residential areas, and noise-sensitive sites where a traditional open generator might be too loud.

What are the benefits of a Cummins-powered generator?

Cummins engines are known for their reliability, strong performance, and efficient fuel use. They are widely trusted in commercial and industrial environments where dependable power is essential.

What maintenance does a 33kVA generator require?

Routine servicing includes regular oil and filter changes, coolant checks, and inspection of the fuel and electrical systems. Keeping up with maintenance helps ensure reliable performance and extends the life of the generator.
