Cummins Powered 88kVA Silent Diesel Generator

Name: Cummins Powered 88kVA Silent Diesel Generator
Brand: Riequip NZ
Price: 33235.0 NZD
Availability: InStock

SKU G2739T

$28,900.00

$33,235.00 - $33,235.00

$33,235.00

$33,235.00 - $33,235.00

$28,900.00

Quantity

Delivered Free. New Zealand wide.

Description

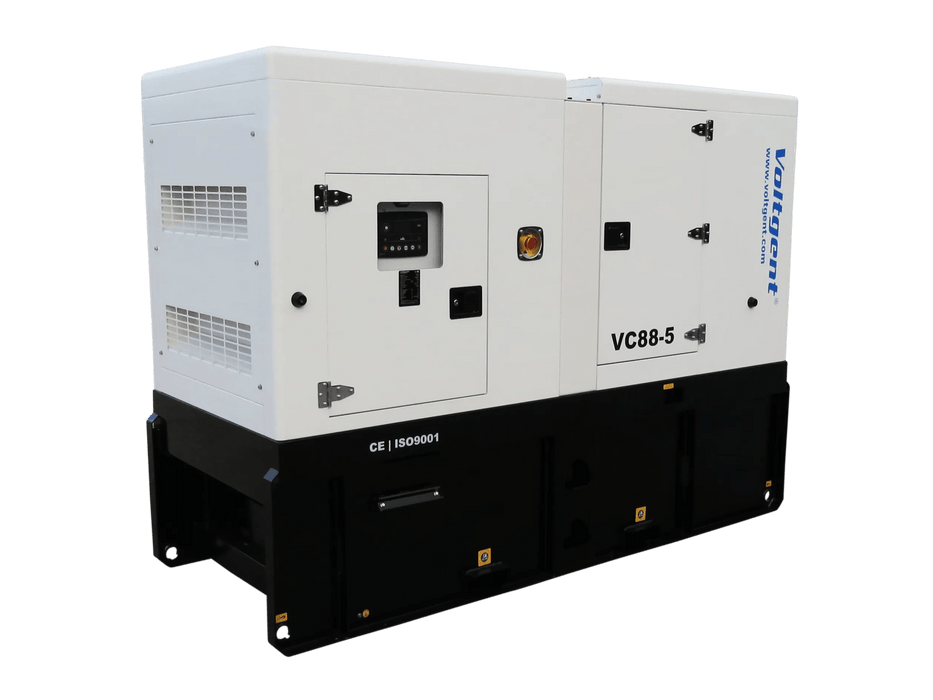

Sample image only, actual product may vary.

Built Tough. Built to Last. Power You Can Rely On – When the lights go out, this 88kVA Silent Enclosed Diesel Generator – Cummins Powered steps up without hesitation. Engineered for serious performance, it delivers dependable power for farms, homes, workshops, and commercial sites that simply can’t afford downtime.

Bullet-Proof Cummins Reliability – At its heart is the legendary Cummins 4BTA3.9 G11 industrial engine — a proven workhorse known worldwide for strength, efficiency, and long service life. This is the kind of durability only a true industrial engine can offer.

Protection From The Elements – Encased in a heavy-duty acoustic canopy, the generator keeps operating noise low while protecting internal components from harsh New Zealand weather. Built on a robust base with bell-type anti vibration mounts and industrial grade components throughout, it’s made to handle tough environments without compromise.

World Renowned Power – Leroy Somer alternators deliver reliable, efficient power with Class H insulation and proven overload capability for demanding environments, serving key sectors such as marine, oil and gas, mining, energy production, data centres, and biomass operations, while their brushless, self-excited design with advanced AVR provides smooth, stable voltage ideal for sensitive electronics, pumps, power tools, and critical building systems, ensuring dependable performance across a wide range of applications.

Long Run Times – A generous 455-litre bunded fuel tank delivers extended run time when you need it most. Generator will run for 50 hours at 50% load. Intelligent Controller Technology – The advanced Deepsea DSE6120 controller provides full system monitoring, automatic start functionality, and seamless integration with an Automatic Transfer Switch (ATS) for effortless backup protection.

Features

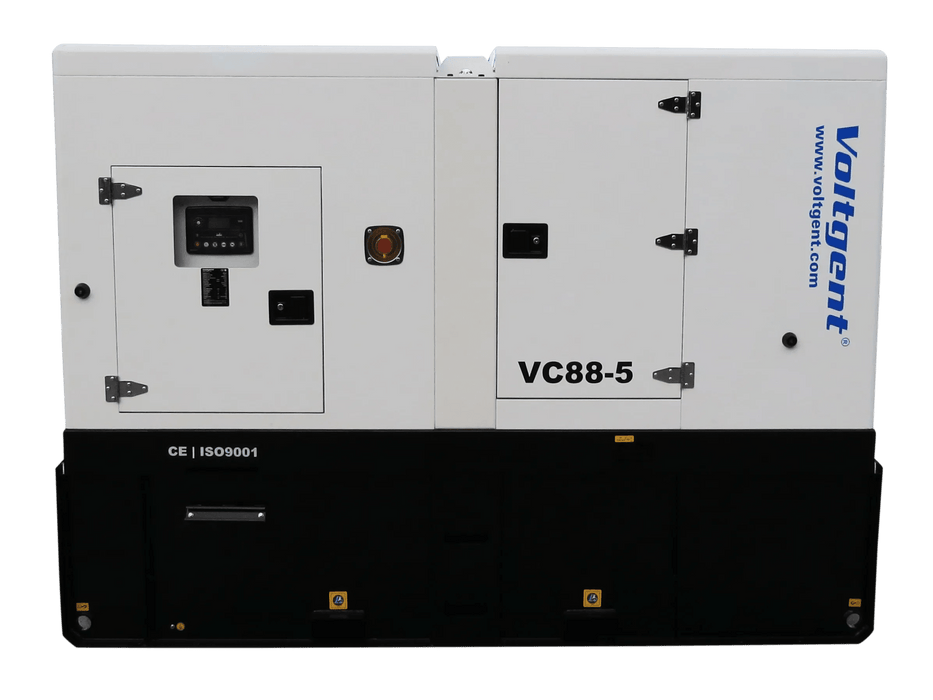

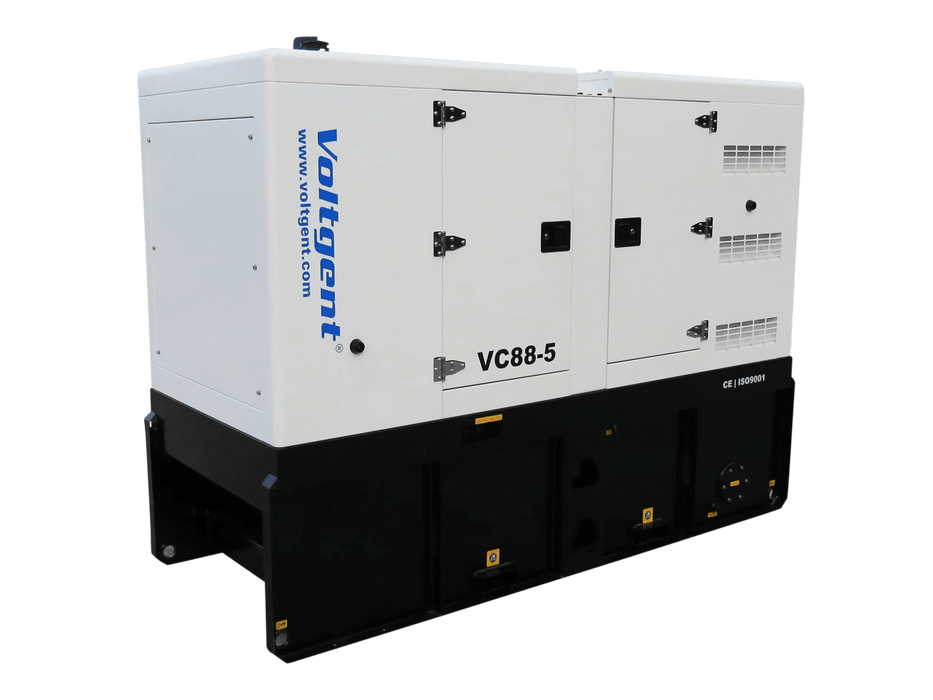

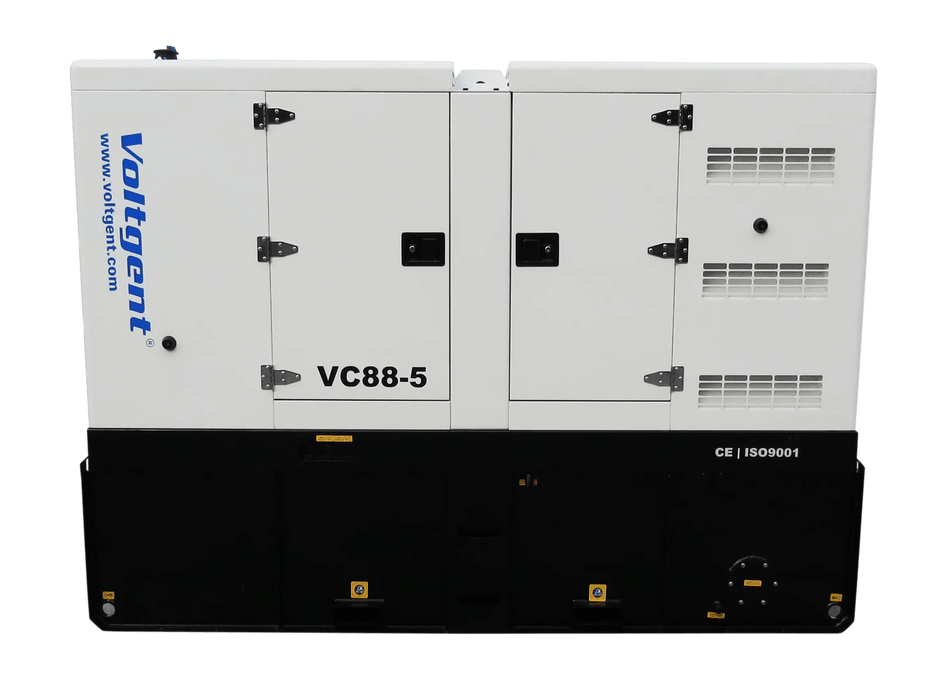

Model: Cummins VC88-5
Heavy‑duty Cummins 4BTA3.9-G11 diesel engine for long‑term reliability
Silent enclosed canopy for low‑noise operation
88kVA standby output (70kW) – ideal for homes, farms & commercial buildings
Leroy Somer Brushless alternator, with electronic AVR for clean and stable voltage
Brushless alternator with electronic AVR for clean and stable voltage
Fuel‑efficient performance across all load levels
Large 455L diesel tank for extended run time
DSE6120 controller with auto‑start and full system monitoring
Water‑cooled engine for optimal performance and longevity
Long lasting stainless steel door hinges
Rugged construction designed for NZ conditions
ATS‑ready – suitable for Automatic Transfer Switch connection
Strong steel frame & weather‑resistant finish
Dedicated cable entry port
Rain cap on exhaust outlet
Battery isolator switch
Oil and water separator included for ultimate engine protection
Emergency stop button with cover to prevent accidental activation
Above industry standard high pressure fuel hoses
All electrical connectors are IP67 rated for added safety and longevity
Fitted with maintenance free Varta batteries and Deep Sea battery charger
Integrated LED lighting inside canopy and control panel
Rigorous factory checks and load bank tests guarantees performance

Generator protection: the canopies undergo shot blasting, pickling, and phosphating before coating to ensure superior corrosion resistance and paint adhesion. This advanced pretreatment process helps protect against rust, weather exposure, and environmental wear — keeping your generator looking better and performing reliably for longer.

Specifications

Generator Output

Standby Output: 88 kVA / 70 kW
Prime Output: 80 kVA / 64 kW
Voltage: 400/230V
Frequency: 50Hz
Fuel Type: Diesel
Noise Level: 73db @ 7m with no load
Power Factor: 0.8
Phase: 3‑phase

Engine

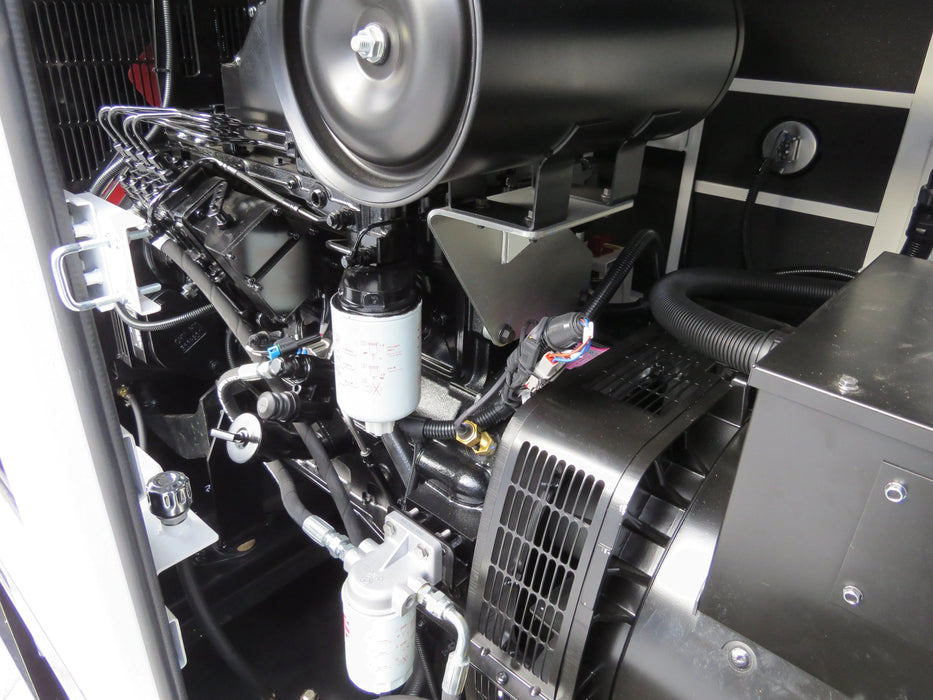

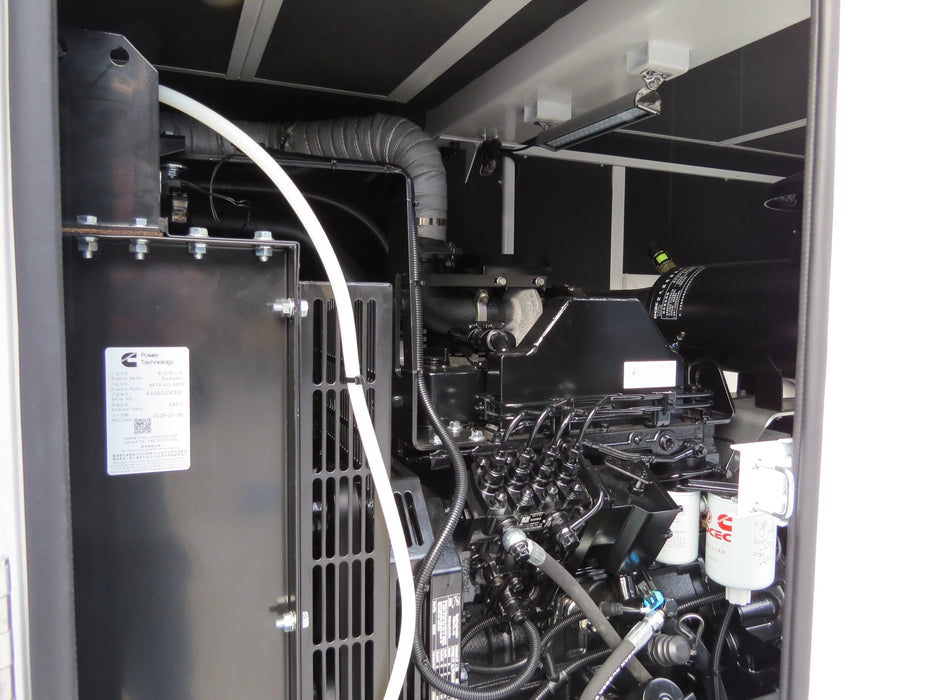

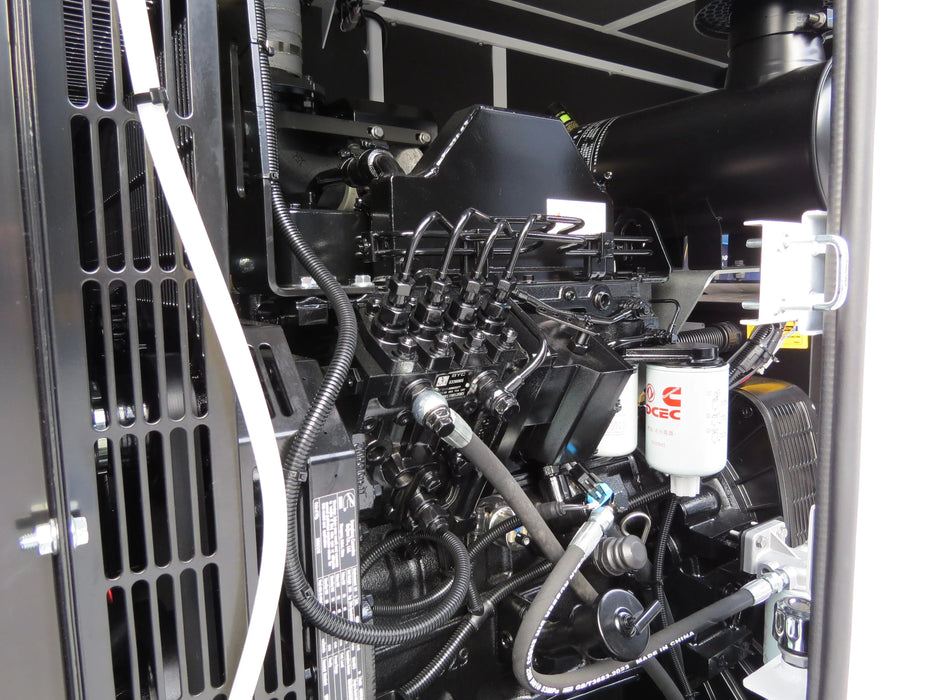

Model: Cummins 4BTA3.9-G11
Type: 4‑stroke diesel, water‑cooled
Aspiration: Turbocharged & Aftercooled
Cylinders: 4‑inline
Bore × Stroke: 102 × 120 mm
Displacement: 3.9 L
Compression Ratio: 17.3:1
Governor Type: Electronic
Injection Type: Direct
Oil Capacity: 10.9 L
Cooling System Capacity: 21.9 L
Battery Requirement: 2 × 60Ah (24V)
Starter Power: 3.7 kW

Fuel Consumption

50% Load (Prime): 9.1 L/h
75% Load (Prime): 13.2 L/h
100% Load (Prime): 17.6 L/h
100% Load (Standby): 20 L/h

Alternator

Model: Leroy Somer TAL-A44-C
Type: Brushless, self‑excited
Poles: 4‑pole
Voltage Regulation: Electronic AVR
Insulation Class: H
Enclosure: IP23
Winding: Star‑series
Bearing: Single bearing
Coupling: Flexible disc

Air & Exhaust

Air Intake Flow: 70 L/s
Exhaust Temperature: 548°C
Exhaust Gas Flow: 134 L/s
Maximum Back Pressure: 10 kPa

Dimensions & Weight

Silent Set

Dimensions (L×W×H): 2720 × 1100 × 1970 mm
Dry Weight: 1760 kg
Fuel Tank Capacity: 455 L

Open Set

Dimensions (L×W×H): 1900 × 980 × 1640 mm
Dry Weight: 1080 kg
Fuel Tank Capacity: 160 L

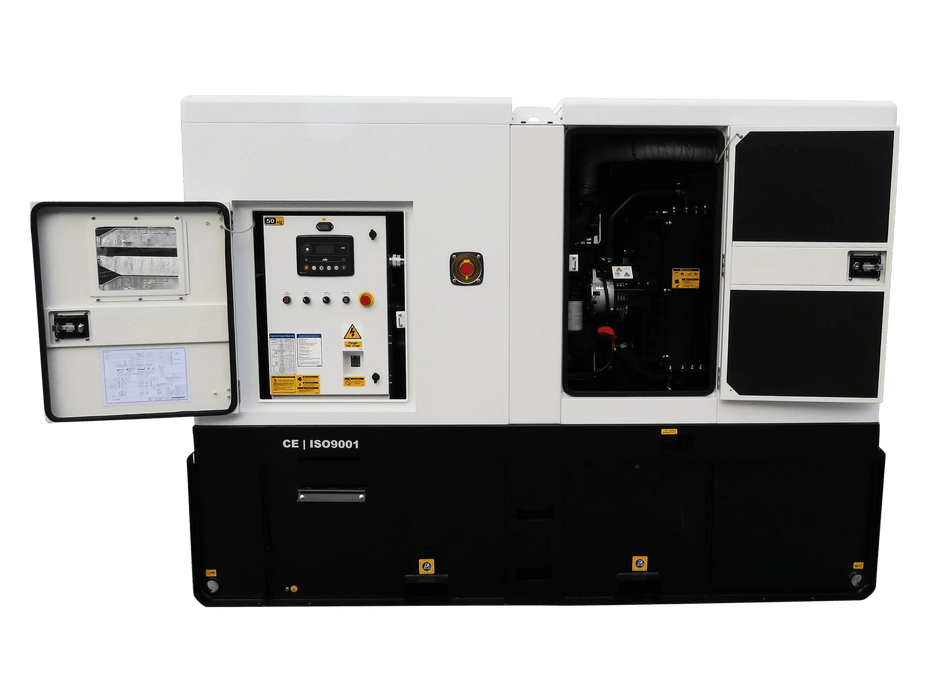

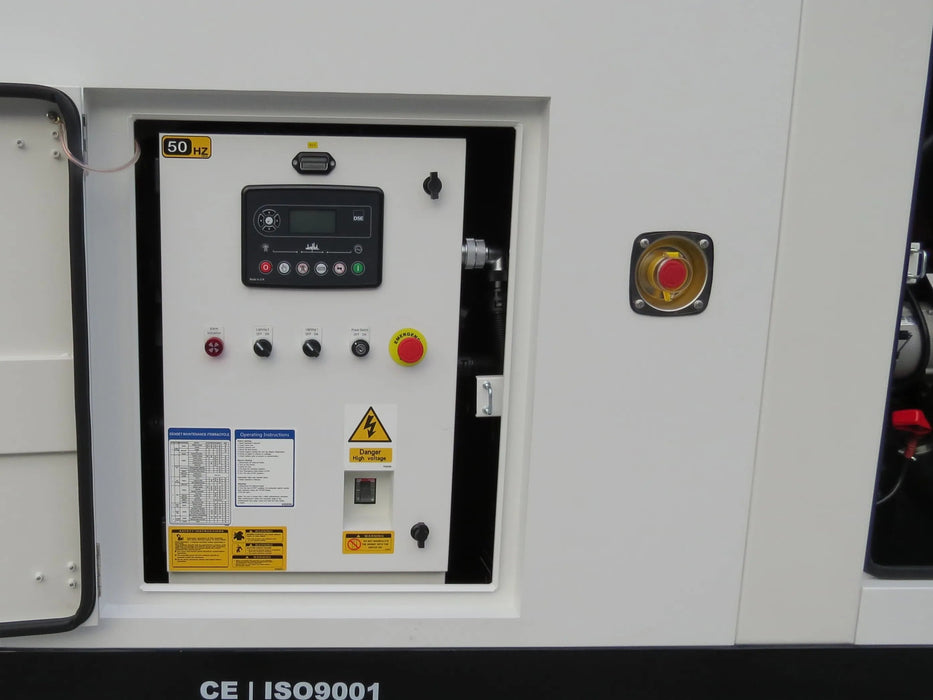

Control Panel – DSE6120

The DSE6120 controller provides:

Automatic or manual start
Back‑lit LCD display
Generator & mains monitoring
Adjustable voltage & frequency protection
Event logging
CAN communication
Multiple configurable inputs & outputs

Ideal Applications

Commercial & industrial standby power
Workshops & engineering operations
Construction & civil works
Dairy, agricultural & rural industry
Emergency & critical‑operations backup

The RIEQUIP Advantage

New Zealand owned & operated
Every item test‑run before dispatch
2‑year or 1000‑hour warranty (whichever occurs first)
Nationwide service agents
Stores in Auckland, Christchurch & Nelson
Guaranteed spare‑parts backup for the life of your machine

Quiet when it runs. Relentless when it counts.
This is standby power built for real‑world conditions, rugged, reliable, and ready to work.

Product Documentation

G2739T-Genset Data Sheet-VC88-5 Datasheet-Riequip.pdf

FAQs

What can an 88kVA diesel generator power?

An 88kVA generator is well suited for large homes, farms, commercial buildings, and construction sites. It can comfortably run multiple heavy loads such as machinery, pumps, air conditioning systems, and essential business equipment.

Is this generator suitable for standby or prime power use?

Yes, it can be used for both standby (backup during outages) and prime power applications, depending on your setup. It is a reliable option for continuous use on worksites or as backup for critical operations.

What are the benefits of a Cummins-powered generator?

Cummins engines are known for their durability, fuel efficiency, and consistent performance. They are widely trusted in industrial and commercial environments for handling demanding workloads.

How quiet is a silent diesel generator?

Silent generators are enclosed in sound-attenuated canopies designed to reduce noise and vibration, making them suitable for use in noise-sensitive environments like urban sites, businesses, and residential areas.

What maintenance does an 88kVA diesel generator require?

Routine maintenance includes regular oil and filter changes, coolant checks, and inspection of fuel and electrical systems. Keeping up with servicing helps ensure reliable performance and extends the life of the generator.
