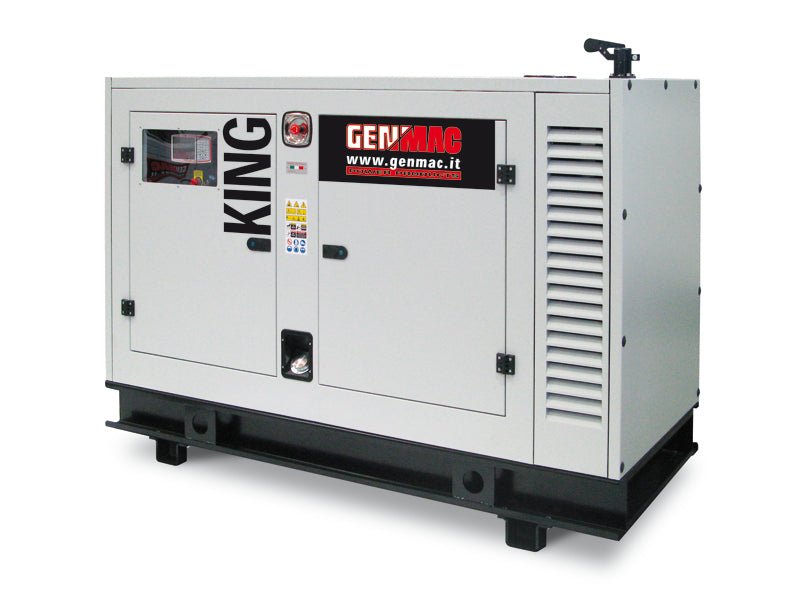

Genmac King G100PS Perkins Diesel Generator 110kVA Silenced with huge 1000ltr Fuel Tank
SKU G3571H-1000
Sold out
$46,500.00
Original price
$53,475.00
-
Original price
$53,475.00
Original price
$53,475.00
$53,475.00
-
$53,475.00
Current price
$46,500.00
Description
Features
Custom design, full installation, maintenance and service contracts available with Riequip's partner company Power Plant Supplies Ltd.
- Genuine Perkins 1104C-44TAG2 diesel engine 1500rpm water cooled
- Genuine Stamford alternator with Pure Sinewave output
- 110kVA standby power output
- 100kVA continuous output
- Three phase 400v output & 230v single phase output
- 1000L bunded fuel tank with a long run time of up to 85 hours @ 50% load & 58.5 hours @ 75% load!!
- Noise level 69db @ 7m
- Dimensions LxWxH 2430 x 1056 x 2450mm
- Weight 1850kg
- Made in Italy
- Finance options available
Control Panel Features
- Self-standing tower with IP65 metal box
- Circuit breaker
- AMF controller DSE4520
- Voltmeter, Frequencymeter, Ammeter
- Generator power (kW, kV Ar, kV A & pf) monitoring
- Hour meter
- Fuel level meter
- Overload (kW & kV Ar) protection
- Low oil pressure protection
- High coolant temperature protection
- Low fuel level protection
- Battery charger alternator fault
- Rpm protection
- Emergency stop button
- Audible alarm
- Terminal board for ATS connection
- Can Bus reading Port (if standard on the engine)
- Battery charger
- On/off switch
Genmac Advantages
Frame:
-
Heavy duty fabricated welded base plate with high quality steel UNI S235 JR
- Heavy duty, bell type, rubber anti-vibration mountings
- Dedicated area to make easier the electrical connection to the load
- Fuel tank with drain plug and retention basin
- Feet and four lifting holes on the base
Canopy:
- Four large doors for easy access for service and maintenance
- Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009)
- High precision sheet cutting with nitrogen laser technology to avoid oxidation
- Sandblasting and cataphoresis treatment of intake / exhaust grids
- Weatherproof sealed joints
- High-tech Stainless steel hinges, rust-free
- Lockable handles in each door
- Grey RAL 7035 “orange peel” specific powder coat paint for outdoor protection
- Rain cap on exhaust outlet
- Coolant refilling specific hatch
- Fuel filler outside enclosure
- Ecological Sound foam: 100% Recyclable, 40mm thickness, fireproof self-extinguishing class1 fire-reaction compliant washable,
- Sound foam is mechanically fixed to the frame, far superior to cheaper glued options
Muffler:
- Residential type, integrated in the canopy
- With aluminum coating for longer life
Control Panel:
- Self-standing control panel tower made with metal structure and components to grant IP65 protection, easily removable for maintenance
- Easy access to control panel through canopy’s door, equipped with lexan window
- Control panel is divided in two independent and insulated boxes separating Controls (Controller and numbered terminal board) from Power connection (circuit breaker and cable inlet)
- External dedicated area to make easier the electrical connection to the load
- Power connection between circuit breaker and alternator made with high resistance neoprene cables (H07RNF) and using cable glands for waterproof connections All units and components are prototype tested, factory build and production tested. A specific control procedure during the several stages of production ensures long life and reliability.
Optional Accessories:
- On road trailer options
- ATS - Automatic transfer switches from mains to generator
- Oil heaters
- Exhaust extensions
- Water heater
- Cyclone pre air filter
- Insulation jackets
- Enlarged fuel tanks
Get The RIEQUIP Advantage!
- Every item is test run before dispatch
- 2 year or 2000 hour warranty(whichever occurs first)
- Service agents nationwide
- Guaranteed spare parts backup for the life of your machine!
FAQ
It delivers 110 kVA standby power and 100 kVA continuous (prime) output with three-phase 400 V and 230 V single-phase sockets, suitable for commercial, industrial, and standby applications.
This model is powered by a genuine Perkins 1104C-44TAG2 diesel engine running at 1500 rpm, water-cooled, paired with a genuine Stamford alternator that produces pure sinewave output for stable and reliable power quality.
With the 1000 L bunded fuel tank, it can deliver extended runtimes of up to around 85 hours at 50 % load and approximately 58.5 hours at 75 % load before refuelling is needed.
Yes — the generator features a fully enclosed silenced canopy with ecological sound foam and a high-quality muffler, producing about 69 dB of noise at 7 m, which is relatively quiet for a unit of this size.
It includes a DSE4520 AMF controller with voltmeter, frequency meter, ammeter, fuel level gauge, hour meter, overload and engine protections (low oil pressure, low fuel, high coolant temperature), an audible alarm, emergency stop, and a terminal board for automatic transfer switch (ATS) connection.
