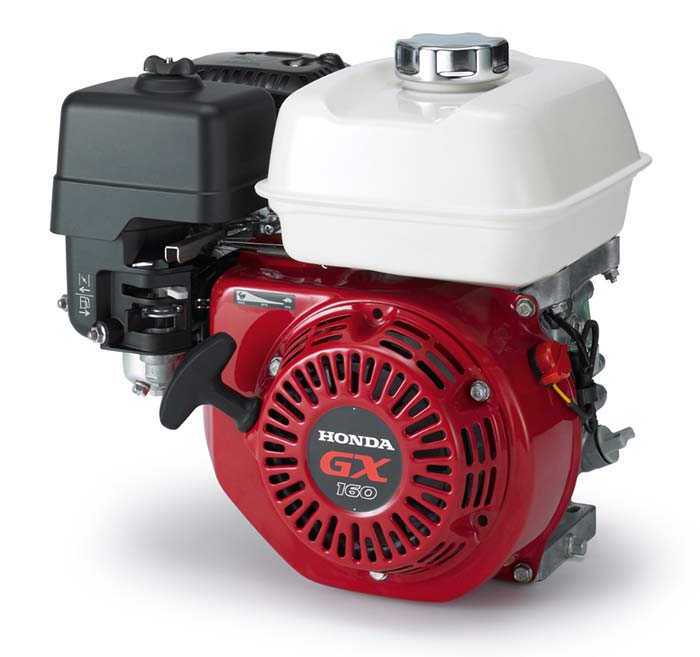

Honda GX160 Engine 20mm Shaft
Description
Features
Features:
- GX160, 5.5HP max
- Engine is easy starting OHV design
- Max net torque 10.3Nm @2500rpm
- 20mm keyed shaft
- Shaft length 53mm
- Bore x Stroke – 68 x 45
- Displacement 163cm³
- Compression ratio 8.5:1
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side)
- Cast iron bore
- Recoil start
- 3.1L fuel capacity
- Fuel consumption; 1.4L/hour @3600rpm
- Oil capacity 0.6ltr
- Dimensions (LxWxH); 312x362x335mm
- Weight 15kg
Solid reliable power & performance from the world’s most innovative engine maker.
Also available with:
- 2:1 reduction
- 6:1 reduction
- 3/4" keyed shaft
- Threaded pump shaft
EASY TO USE AND MAINTAIN
A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.
And with a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter your engine will be easy to upkeep.
QUALITY AND PERFORMANCE COME STANDARD
Honda’s GX series engines are legendary for superior reliability and performance and the GX160 is no exception. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.
Being the Flagship model in Honda's world-renowned GX Engine range, the GX160 can be used in all sorts of applications. Pressure washers and construction/industrial equipment, generators and commercial lawncare equipment; its uses are wide ranging.
FUEL EFFICIENT WITH HIGH OUTPUT
The GX160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
FREE Service Pack
Valued at $59.00!!Includes;
- 1 x 1L engine oil
- 1 x replacement air filter
- 1 x replacement NGK spark plug
- 1 x spark plug spanner
Get The RIEQUIP Advantage!
- Every item is test run before dispatch
- 3 year warranty
- Approved Honda service agents nationwide
- Guaranteed spare parts backup for the life of your machine!
