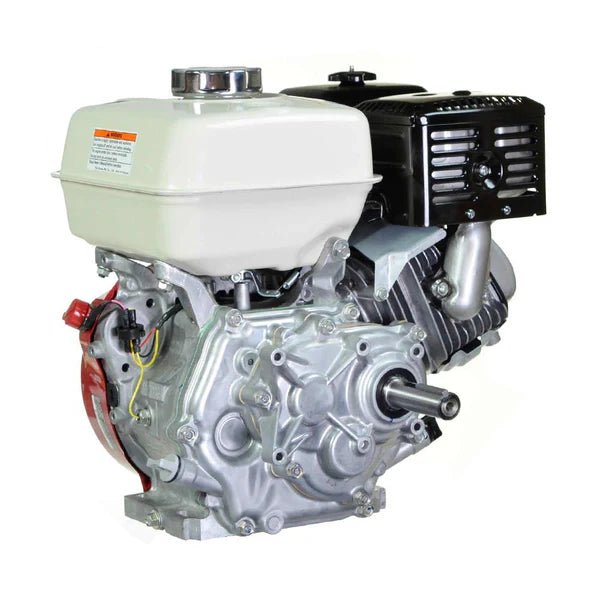

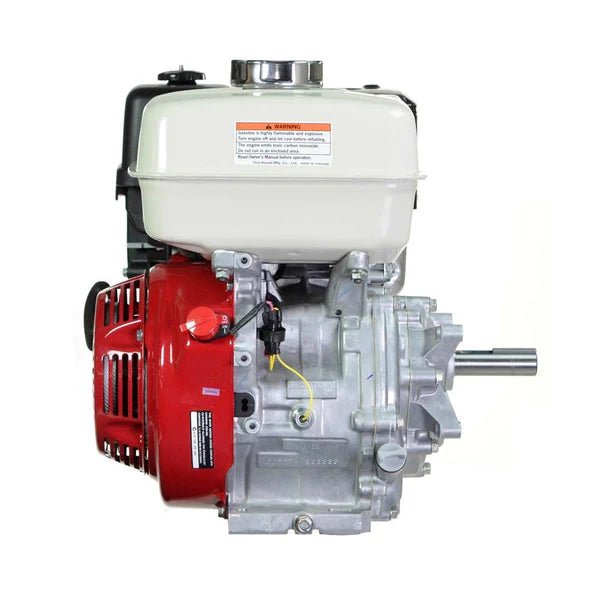

Honda GX270 Engine 6:1 Reduction

SKU E1373F
Original price $1,898.26 - Original price $1,898.26
Original price
$1,898.26 - $1,898.26
Current price $2,183.00
Honda’s GX series air cooled 4 stroke OHV horizontal shaft engines deliver solid reliable power and performance in a compact, lightweight design with an optimized layout of cylinder, air cleaner, muffler and fuel tank for easy installation into a wide range of equipment. Consistent easy starting thanks to Honda’s automatic mechanical decompressor and hot-sparking transistorized ignition.


  • GX270, 9HP max
  • Engine is easy starting OHV design
  • 6:1 reduction box, ideal for spray pumps
  • Output shaft runs @ 660 rpm max
  • Max net torque 17.7Nm @ 2500rpm
  • 1” keyed shaft
  • Bore x Stroke – 77 x 58
  • Displacement 270cm³
  • Compression ratio 8.2:1
  • PTO Shaft Rotation - Counter-clockwise (from P.T.O. side)
  • Cast iron bore
  • Pull start
  • 6L fuel capacity
  • Fuel consumption; 2.5L/hour @3600rpm
  • Oil capacity 1.1ltr
  • Dimensions (LxWxH); 380x430x410mm
  • Weight 25kg

Solid reliable power & performance from the world’s most innovative engine maker.

OHV DESIGN - As the name implies, Over Head Valve engines (OHV) have the valves located above the combustion chamber, in the roof of the cylinder head. The Over Head Valve layout permits smoother fuel mixture intake, plus quicker and more complete exhaust. This increased combustion efficiency, in turn, enables a higher compression ratio to be used. In this way it is possible to obtain a greater power output and to avoid the build-up of carbon. The OHV-design also gives an excellent thermal balance, which contributes to reduced cylinder distortion, a decrease in oil consumption and an increase in engine service life.

FREE Service Pack

Valued at $79.00!!


  • 2 x 1L engine oil
  • 1 x replacement air filter
  • 1 x replacement NGK spark plug
  • 1 x spark plug spanner

Get The RIEQUIP Advantage!

  • Every item is test run before dispatch
  • 3 year warranty
  • Approved Honda service agents nationwide
  • Guaranteed spare parts backup for the life of your machine!
