Kubota Powered 11.6kVA Single Phase Silenced Diesel Generator

Name: Kubota Powered 11.6kVA Single Phase Silenced Diesel Generator
Brand: Riequip NZ
Price: 18055.0 NZD
Availability: InStock

SKU G2761T

$15,700.00

$18,055.00 - $18,055.00

$18,055.00

$18,055.00 - $18,055.00

$15,700.00

Quantity

Delivered Free. New Zealand wide.

Description

Pre-order available. Estimated stock arrival approx. 28th September 2026.

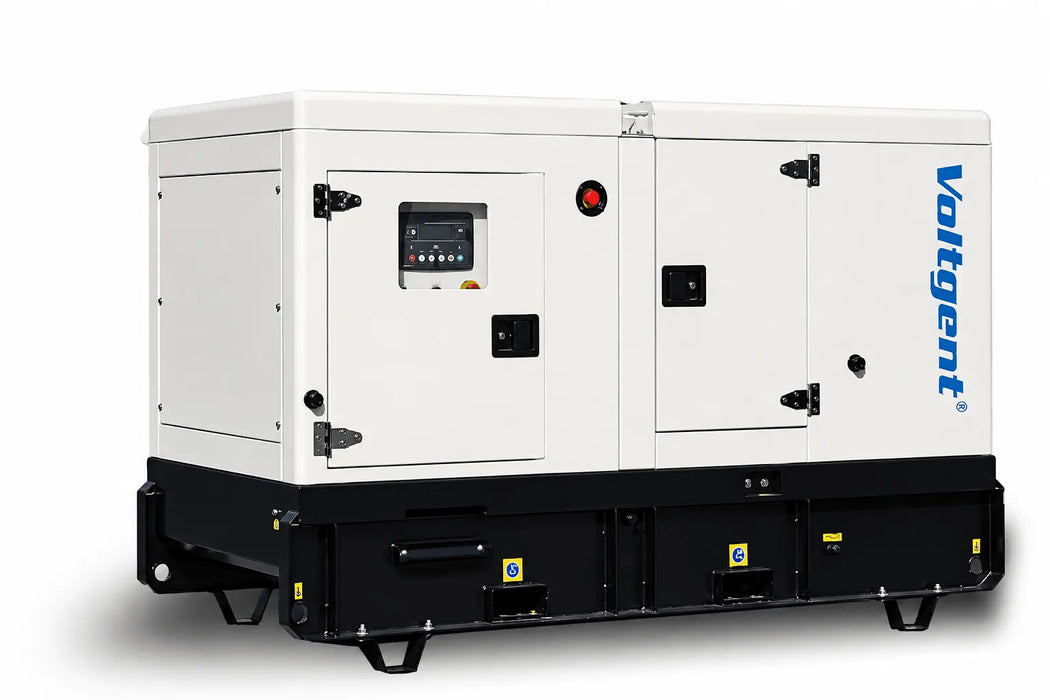

Built Tough. Built to Last. Power You Can Rely On – When the lights go out, this 11.6kVA Silenced Diesel Generator – Kubota Powered (Model No: VK11.6-1P) steps up without hesitation. Engineered for serious performance, it delivers dependable single-phase power for homes, workshops and small commercial sites that simply can't afford downtime.

Bullet-Proof Kubota Reliability – At its heart is the Kubota D1703-E2BG industrial diesel engine, part of a range known worldwide for strength, efficiency and long service life. This is the kind of durability only a true industrial engine can offer.

Protection From The Elements – Encased in a heavy-duty silenced canopy, the generator keeps operating noise low at just 63dB @ 7m, while protecting internal components from harsh New Zealand weather, making it well suited to demanding sites and conditions.

World Renowned Power – Fitted with a Leroy Somer TAL-A40C1-S alternator, this generator delivers clean, stable single-phase power with the electronic AVR regulation Leroy Somer is known for worldwide.

Long Run Times – A generous 137-litre bunded fuel tank delivers extended run time when you need it most, running for approximately 58 hours at 50% Prime load.

Intelligent Controller Technology – The advanced DSE6120 controller provides full system monitoring, automatic start functionality, and seamless integration with mains power for effortless backup protection.

Features

Model: Kubota VK11.6-1P
Heavy‑duty Kubota D1703-E2BG 1500rpm low revving diesel engine for long‑term reliability
Silent enclosed canopy for low‑noise operation
11.6kVA standby output (11.6kW) – ideal for homes, farms & commercial buildings
Leroy Somer TAL-A40C1-S Brushless alternator with electronic AVR for clean and stable voltage
Fuel‑efficient performance across all load levels
Large 137L bunded diesel tank for extended run time
DSE6120 controller with auto‑start and full system monitoring
Water‑cooled engine for optimal performance and longevity
Long lasting stainless steel door hinges
Rugged construction designed for NZ conditions
ATS‑ready – suitable for Automatic Transfer Switch connection
Strong steel frame & weather‑resistant finish
Dedicated cable entry port
Rain cap on exhaust outlet
Battery isolator switch
Oil and water separator included for ultimate engine protection
Emergency stop button with cover to prevent accidental activation
Above industry standard high pressure fuel hoses
All electrical connectors are IP67 rated for added safety and longevity
Fitted with maintenance free Varta batteries and Deep Sea battery charger
Integrated LED lighting inside canopy and control panel
Rigorous factory checks and load bank tests guarantees performance
3 industrial outlet sockets: 1x 240V 32A CEE style 3-pin single-phase, 1x 240V 32A PDL style 3-pin single-phase, 2x 240V 15A NZ 3-pin single-phase, for flexible connection options
Electric start for quick, reliable start-up

Generator protection: the canopies undergo shot blasting, pickling, and phosphating before coating to ensure superior corrosion resistance and paint adhesion. This advanced pretreatment process helps protect against rust, weather exposure, and environmental wear — keeping your generator looking better and performing reliably for longer.

Specifications

Generator Output

Model No: VK11.6-1P
Standby Output: 11.6 kVA / 11.6 kW
Prime Output: 10.6 kVA / 10.6 kW
Voltage: 240V
Frequency: 50Hz
Fuel Type: Diesel
Fuel Tank Capacity: 137L, bunded
Power Factor: 1 (Cos Phi)
Phase: Single-phase
Max Rated Output Current: 49.0A
Noise Level: 63dB @ 7m
Outlets:
1x 240V 32A CEE style 3-pin single-phase
1x 240V 32A PDL style 3-pin single-phase
2x 240V 15A NZ 3-pin single-phase
Starting System: Electric start

Engine

Model: Kubota D1703-E2BG
Type: 4-stroke diesel, water-cooled
Aspiration: Naturally aspirated
Cylinders: 3-L (3-cylinder in-line)
Bore × Stroke: 87 × 92.4 mm
Displacement: 1.6 L
Compression Ratio: 23:1
Governor: Mechanical
Injection: Direct
Air Filter: Dry
Speed: 1500rpm
Oil Capacity: 7.6 L
Total Coolant Capacity: 6 L
Lube Oil Consumption: 0.5%–1% of fuel consumption (full load)
Battery Requirement: 1 × 60Ah, 12V
Starting Power: 1.4kW

Fuel Consumption

50% Load (Prime): 2.37 L/h
100% Load (Prime): 4.7 L/h

Alternator

Model: Leroy Somer TAL-A40C1-S
Type: Brushless, self-excited
Phases: 1
Poles: 4-pole
Power Factor: 1
Voltage Regulation: Electronic AVR
Insulation Class: H
Enclosure: IP23
Bearing: Single bearing
Coupling: Flexible disc
Winding Connection: Star-series
Coating: Standard (vacuum impregnation)

Air & Exhaust

Intake Air Flow: 22 L/s
Exhaust Gas Flow: 48.5 L/s
Maximum Exhaust Temperature: 550°C
Max Back Pressure: 7 kPa

Dimensions & Weight

Dimensions (L×W×H): 2100 × 1050 × 1520 mm
Dry Weight: 1027 kg
Fuel Tank: 137L

Control Panel – DSE6120

Automatic mains failure (AMF) control for single gen-set
1-phase mains and generator voltage monitoring
Back-lit LCD display
Generator current monitoring and protection
Event logging (10 events) plus engine-hours counter
6 digital inputs, 3 analogue sender inputs, 6 configurable outputs
CAN-engine or magnetic-pickup/alternator-sensing versions available
USB connection to DSE Configuration Suite PC software

Ideal Applications

Residential & small commercial standby power
Workshops & light industrial backup
Rural, lifestyle block & agricultural use
Emergency & critical single-phase power needs

Get The RIEQUIP Advantage!

New Zealand owned and operated
Every item is test run before dispatch
2 years or 1000 hours warranty (whichever occurs first)
Service agents nationwide
Stores in Auckland, Christchurch & Nelson
Guaranteed spare parts backup for the life of your machine!

Quiet when it runs. Relentless when it counts.
This is standby power built for real‑world conditions, rugged, reliable, and ready to work.

Product Documentation

Kubota VK11.6-1P Generator Datasheet.pdf

FAQs

How many kVA is the Kubota 11.6kVA single phase generator and how much power can it run continuously?

The Kubota Powered 11.6kVA Single Phase Silenced Diesel Generator (model VK11.6-1P) delivers 11.6kVA / 11.6kW standby power and 10.6kVA / 10.6kW prime (continuous) power at 240V, 50Hz. Standby rating covers short-term backup during a mains outage, while the prime rating is the safe continuous load for extended or unattended running.

What can an 11.6kVA single phase generator run?

At its 10.6kW prime output, this generator can run a typical home, workshop or small commercial site's essential circuits simultaneously, such as lighting, refrigeration, power tools, water pumps and general appliances, making it suited to whole-property backup on a single-phase 240V supply rather than just a few individual devices.

How long does the Kubota VK11.6-1P generator run on a full tank of diesel?

With its 137-litre bunded diesel tank, this generator runs for approximately 29 hours at 100% prime load (4.7 L/h) or around 58 hours at 50% prime load (2.37 L/h), giving extended unattended run time between refuelling.

What is the difference between the Kubota 11.6kVA single phase and 14.5kVA three phase generators?

The 11.6kVA model (G2761T) is a single-phase 240V unit best suited to homes, workshops and small commercial sites, while the 14.5kVA model (G2762T) is a three-phase unit for sites with three-phase equipment or higher combined loads. Both share the same Kubota D1703-E2BG diesel engine, DSE6120 control panel and 137L bunded fuel tank, differing mainly in output, phase configuration and alternator winding.

Is the Kubota 11.6kVA generator suitable for automatic mains failure (ATS) backup?

Yes. This generator is fitted with a Deep Sea Electronics DSE6120 automatic mains failure (AMF) control module, which automatically starts the generator and transfers the load from mains to generator power during an outage, then transfers back and shuts down once mains power is restored.

What warranty does the Kubota 11.6kVA single phase diesel generator come with?

This generator is covered by Riequip's standard 2-year or 1000-hour warranty (whichever occurs first), backed by nationwide service agents and guaranteed spare parts availability for the life of the machine.
