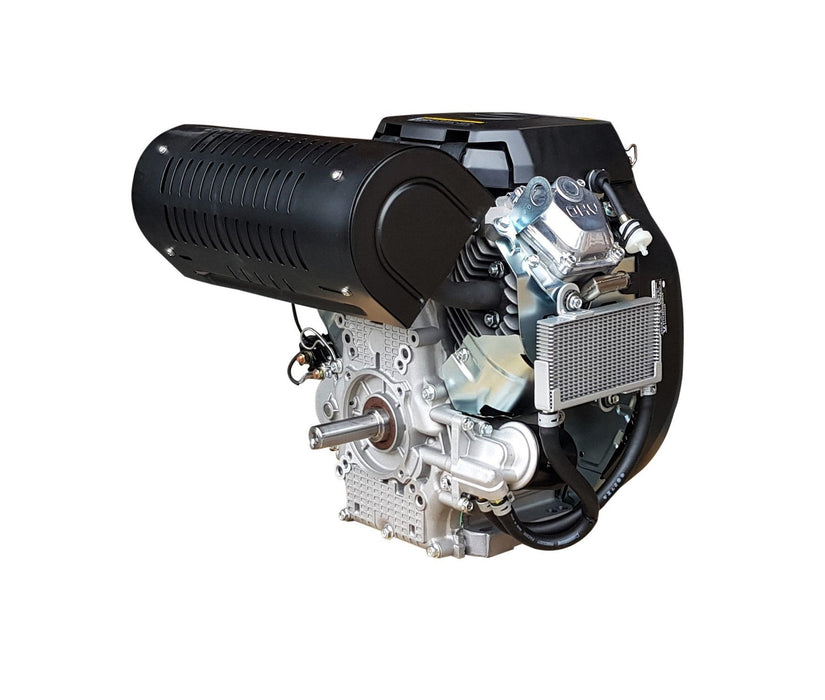

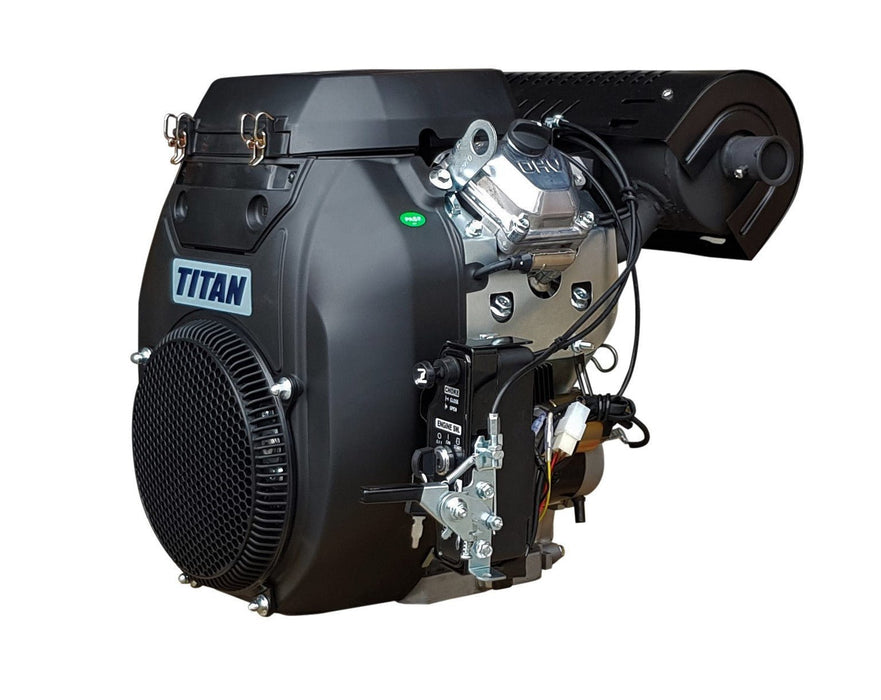

Titan 22HP V-Twin Engine

SKU E1390G
5.0
Rated 5.0 out of 5 stars
1 Review
Original price $1,890.00
Original price $1,890.00 - Original price $1,890.00
Original price $1,890.00
$1,590.00
Current price $1,828.50
$1,590.00 - $1,590.00
Current price $1,828.50
Description
Designed for high performance in medium - to heavy-duty applications, Titan industrial engines provide exceptional reliability for professional use. Easy starting and low fuel consumption are advantages of the OHV design of these engines. The engine design is extremely compatible and easy to install, and simply exchanges with most existing small engines of similar size. Electric start including control box & charge coil for charging the battery.
Features
  • 22HP OHV petrol 4 stoke engine
  • Electric start
  • Four stroke, twin cylinder, air-cooled
  • Full pressure lubrication with screw on oil filter
  • Displacement – 687cm³
  • Output shaft – 1" (25.4mm) with ¼” keyway
  • Output direction - counter clockwise
  • Fuel consumption; 6L/hour @3600rpm
  • Net weight - 46kg
  • Dimensions (LxWxH); 510x495x460mm
  • No fuel tank
  • Large muffler included

The 4-stroke Over Head Valve design of the motor makes it economical and reliable.

Titan engines are full industrial spec with

  • Cast iron cylinder liner
  • Ball bearing supported crankshaft
  • Dual element air cleaner
  • Mechanical decompressor
  • Industrial governor system
  • Low oil cut out system


FREE Service Pack

Valued at $74.00!!

Includes;

  • 2 x 1L engine oil
  • 1 x NGK spark plug
  • 1 x spark plug spanner
  • Air filter Element

Get The RIEQUIP Advantage!

  • Every item test run before dispatch
  • 1 year warranty
  • Approved service agents nationwide
  • Guaranteed spare parts backup for the life of your equipment!
5.0
Rated 5.0 out of 5 stars
Based on 1 review
Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Customer-uploaded media carousel. Press left and right arrows to navigate. Press space or enter to open more details.
Slide 1 selected
1 review
  • EM
    Eoin M.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    9 months ago
    Great woodsplitter up grade 22hp titan

    Smooth running up graded from 16 hp titan the 22 hp runs mint plenty of power and so much quiter
